Shop
KIRSCHNER Abdominal Retractor Set (Oval)
SKU:
MP-170-882-000
KIRSCHNER Oval Frame & Deep Reach Blade
SKU:
MP-170-884-100
GENUINE RING RETRACTOR SETS
SKU:
MP-170-800-903
The genuine and established Table Mounted Ring Retractor System provides a large variety
of configurations. Every kit can be easily set up and adjusted multi-directional even for complex
requirements thanks to the flexible ratchet mechanisms.
Any retractor can be applied as an individual set.
• Large assortment of retractor blades in different sizes
• Expandable basic components to assemble a complex system
• Simple assembly and modifications before and during surgery
• All parts fully autoclavable

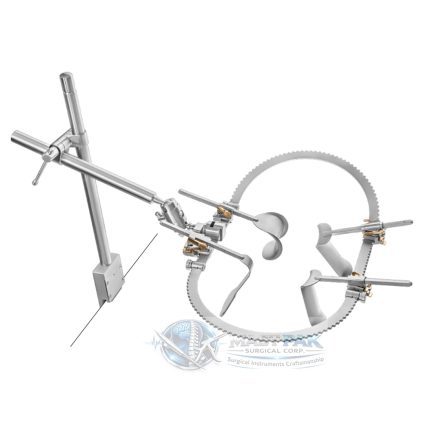

TABLE-MOUNTED RETRACTOR KITS
SKU:
MP-170-800-904
1. Complete Kit Variants
| Kit Description | Post Height | Item Code |
| Retractor Kit, 12" | 300mm | 170-800-904 |
| Retractor Kit, 18" | 460mm | 170-800-900 |
| Retractor Kit, 24" | 610mm | 170-800-902 |
2. Kit Components (Individual Parts)
| Category | Component Description | Item Code |
| A: Table Posts | 300mm ($12"$) / 460mm ($18"$) / 610mm ($24"$) | 170-800-100 / 099 / 098 |
| B: Horizontal Bar | Main Cross Bar (Standard) | 170-800-102 |
| C: Flex Bar | Horizontal Flex Bar (Adjustable) | 170-800-103 |
| D: Ratchets | Standard Ratchet ($2\times$) | 170-800-113 |
| E: Tilt Ratchets | Tilt Ratchet Mechanism ($6\times$) | 170-800-110 |
| F: Post Coupler | Connection between Post & Bar | 170-800-104 |
3. Frames & Specialized Blades
| Type | Size / Description | Item Code |
| G: Oval Frame | Medium, Segmented ($538 \times 300\text{mm}$) | 170-800-032 |
| H: Oval Frame | Medium, Solid ($410 \times 294\text{mm}$) | 170-800-012 |
| I: Gelpi Point | Sharp Pointed Retractor | 170-800-241 |
| J: Malleable Blades | $38 \times 152\text{mm}$ / $51 \times 152\text{mm}$ / $76 \times 152\text{mm}$ | 170-800-231 / 232 / 233 |
| K: BALFOUR | $75 \times 75\text{mm}$ ($3 \times 3"$) | 170-800-202 |
| L: KELLY | 51mm Width (Depths: $76$ to $152\text{mm}$) | 170-800-214 to 217 |
| M: HARRINGTON | Heart-shaped ($64 \times 143\text{mm}$) | 170-800-221 |

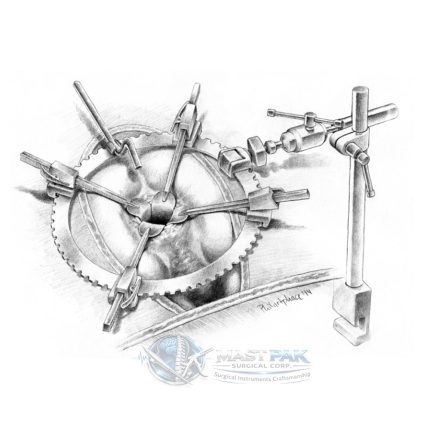

RECTAL SET (Compact Round System)
SKU:
MP-170-800-906

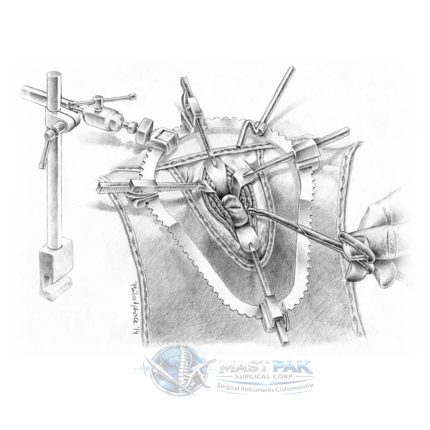

VAGINAL RETRACTOR KIT (Standard Setup)
SKU:
MP-170-800-909
| Kit Component | Description / Dimensions | Item Code |
| Complete Set | Vaginal Retractor Kit (Standard) | 170-800-909 |
| Table Post | 300mm ($12"$) Height | 170-800-100 |
| Horizontal Flex Bar | Flexible adjustment bar | 170-800-103 |
| Tilt Ratchet ($6\times$) | Angle-adjustable mechanisms | 170-800-110 |
| Post Coupler | Post aur Bar ko jorne wala link | 170-800-104 |
| Vaginal Frame | Oval, 20° Angled ($203 \times 267\text{mm}$) | 170-800-051 |

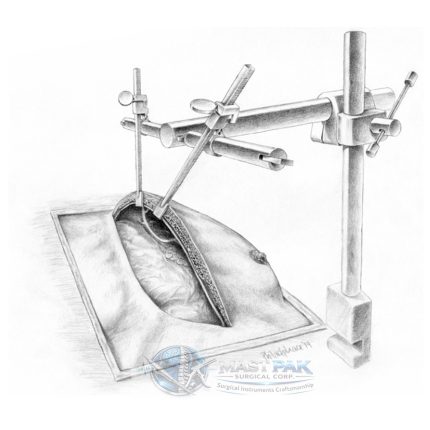

IMA RETRACTOR KIT (Internal Mammary Artery System)
SKU:
MP-170-800-905
| Kit Component | Description / Dimensions | Item Code |
| Complete Set | IMA Retractor Kit | 170-800-905 |
| Table Post | 300mm ($12"$) Height | 170-800-100 |
| Horizontal Bar | Main support bar | 170-800-102 |
| Cross Bar | Secondary transverse bar | 170-798-046 |
| Post Coupler | Post aur Bar ka junction | 170-800-104 |
| Ratchet Mechanism | Lifting & locking unit | 170-798-047 |
| Retractor Blade | Specialized IMA lifting blade | 170-798-048 |

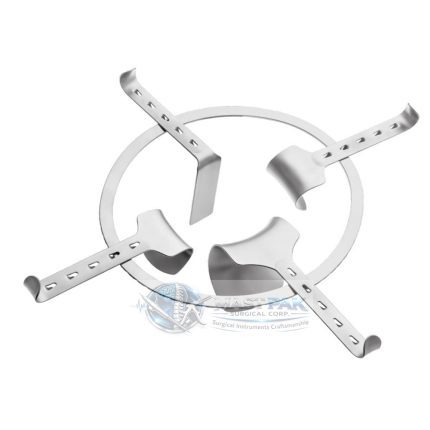

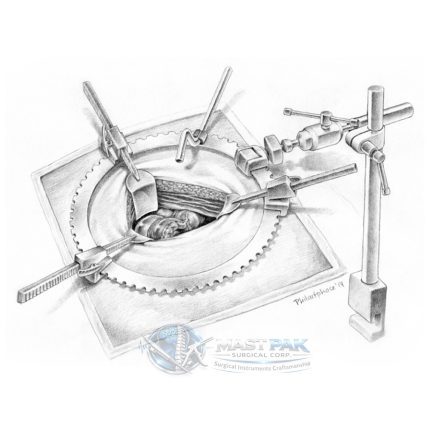

SMALL INCISION KIT (Compact Round System)
SKU:
MP-170-800-907
| Kit Component | Description / Dimensions | Item Code |
| Complete Set | Small Incision Kit | 170-800-907 |
| Round Frame, small | $\varnothing$ 248mm ($9\ 3/4"$) | 170-800-021 |
| Gelpi Point Retractor | Sharp Pointed Retractor | 170-800-241 |
| KELLY Blade (Small) | $25 \times 38\text{mm}$ ($1 \times 1\ 1/2"$) | 170-800-208 |
| KELLY Blade (Medium) | $25 \times 63\text{mm}$ ($1 \times 2\ 1/2"$) | 170-800-209 |

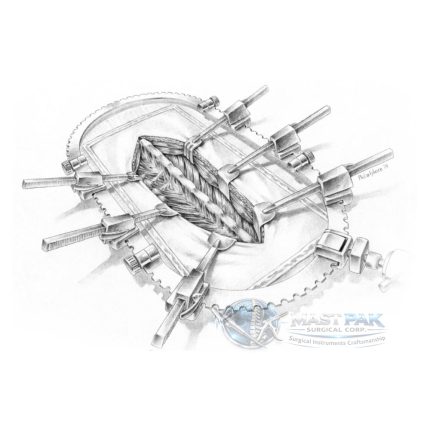

SPINAL RETRACTOR KIT (Modular Ring System)
SKU:
MP-170-800-908
1. Frame & Support Components
| Component Name | Description / Dimensions | Item Code |
| Complete Set | Spinal Retractor Kit | 170-800-908 |
| Table Post | 300mm ($12"$) Height | 170-800-100 |
| Horizontal Flex Bar | Flexible support bar | 170-800-103 |
| Post Coupler | Connection link | 170-800-104 |
| Self-Retaining Tilt Ratchet | Locking mechanism ($6\times$) | 170-800-111 |
| Tilt Ratchet Mechanism | Standard tilt unit ($6\times$) | 170-800-110 |
2. Modular Ring Segments (Frame Building)
| Type | Size / Description | Item Code |
| SCOVILLE Blade | Small ($25 \times 40\text{mm}$) / Large ($25 \times 80\text{mm}$) | 170-800-321 / 322 |
| MEYERDING Blade | Small ($60 \times 17\text{mm}$) / Med / Large ($95 \times 50\text{mm}$) | 170-800-331 / 332 / 333 |
| MEYERDING Prongs | 3 Prongs / 4 Prongs / 6 Prongs (Sharp) | 170-800-343 / 344 / 345 |

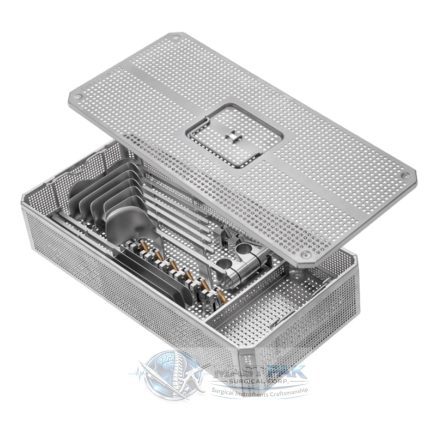

RETRACTOR ACCESSORIES & BLADES SET (With Case)
SKU:
MP-170-800-912
| Component Name | Quantity | Item Code |
| Complete Set (Blades, Accessories, Case) | 1 Set | 170-800-912 |
| Standard Ratchet Mechanism | 2x | 170-800-113 |
| Tilt Ratchet Mechanism | 6x | 170-800-110 |
| Post Coupler | 1x | 170-800-104 |
| Harrington Retractor (Heart-shaped) | 1x | 170-800-221 |
| Balfour Retractor Blade | 1x | 170-800-202 |
| Gelpi Point Retractor | 1x | 170-800-241 |
| Sterilization Case ($527 \times 250 \times 100\text{mm}$) | 1x | 170-800-915 |

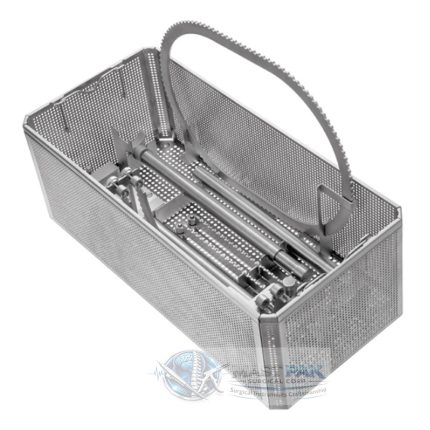

TABLE FIXATION & RING CASE SET (Support System)
SKU:
MP-170-800-913
| Component Name | Description / Quantity | Item Code |
| Complete Set (Fixation & Rings) | Support System with Case | 170-800-913 |
| Table Post | 300mm ($12"$) Support Column ($1\times$) | 170-800-100 |
| Horizontal Flex Bar | Flexible adjustment arm ($1\times$) | 170-800-103 |
| Horizontal Bar | Rigid support bar ($1\times$) | 170-800-102 |
| Oval Frame, Segmented | Medium size, foldable ($1\times$) | 170-800-032 |
| Oval Frame, Medium | Solid/One-piece frame ($1\times$) | 170-800-012 |
| Heavy-Duty Storage Case | $537 \times 250 \times 197\text{mm}$ ($1\times$) | 170-800-914 |
POOLE Suction Tube
SKU:
MP-165-549-220
